Setup CI (Legacy Approach)

Note

This guide covers the legacy include-based approach for GitLab < 17.0 or projects not yet ready to migrate to components.

For GitLab 17.0+, we recommend using the component-based approach: Setup CI with Components

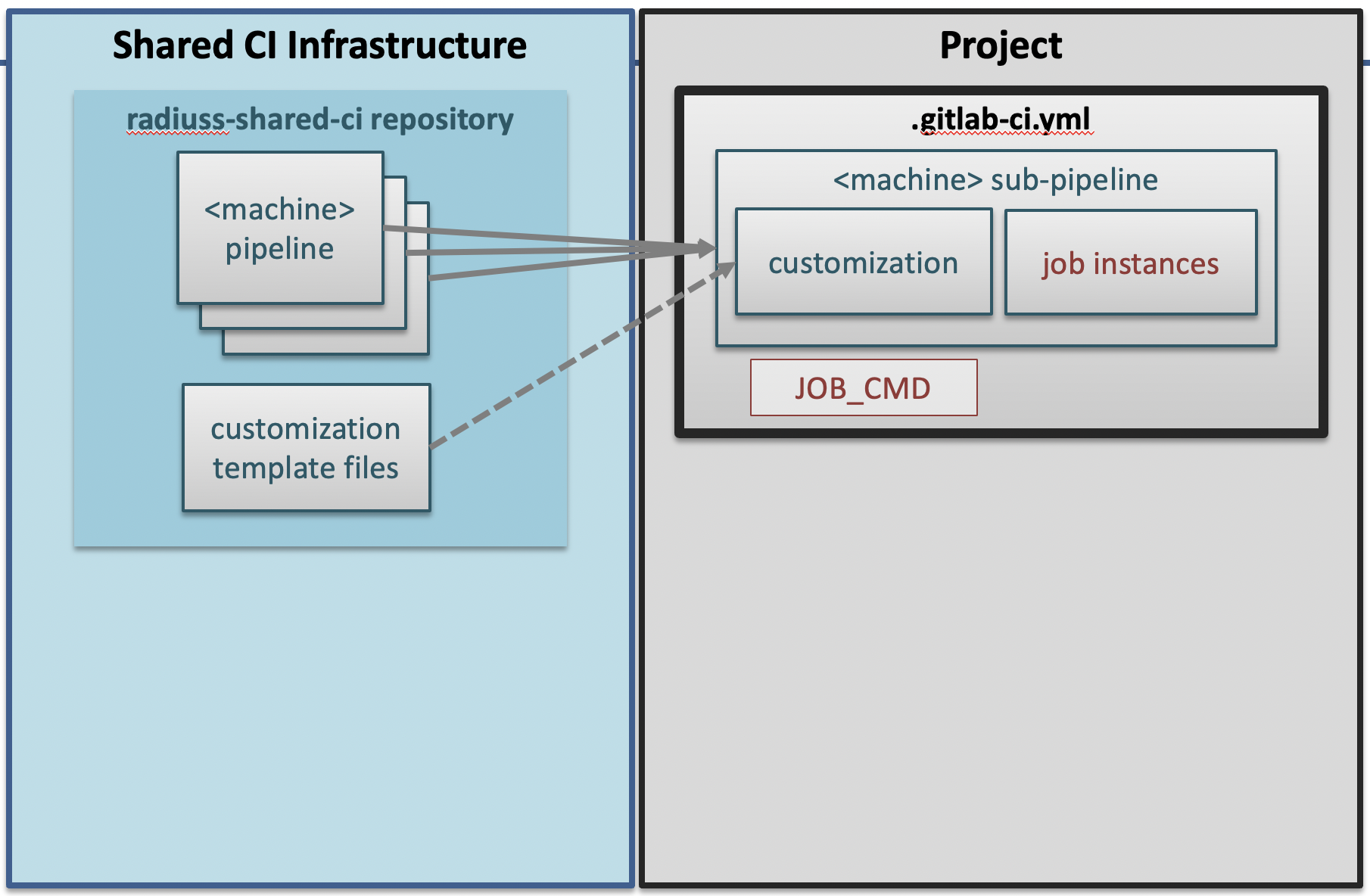

../_images/Shared-CI-Infrastructure.png

The Shared CI Infrastructure is project agnostic.

The pre-requisite for using the RADIUSS Shared CI Infrastructure is that your build and test process can be invoked through a single command line.

Strict separation between the build/test process and CI infrastructure helps with maintenance: it’s easier to debug a standalone script that can be run outside CI.

Note

RADIUSS CI setups typically don’t split build and test phases to avoid complexity and artifacts. However, complex workflows are supported. See Implement Complex CI Workflows for details.

RADIUSS projects typically leverage Spack to manage dependencies and configure the project. This is documented in RADIUSS Spack Configs.

Warning

radiuss-shared-ci is meant to live on the LC GitLab instance. The main repo is hosted on GitHub for accessibility and visibility and is mirrored on LC GitLab. To include files from radiuss-shared-ci, point to the mirror repo on GitLab.

Overview

By sharing the CI definition, projects share the maintenance burden.

With centralized CI configuration, we create an interface between local and shared configurations, keeping it minimal while allowing customization.

Projects set variables and add job instances (inheriting from job templates). Files in the customization directory allow fine tuning.

Note

GitLab allows projects to include external files to configure their CI. Legacy RADIUSS Shared CI relies on this mechanism.

File structure

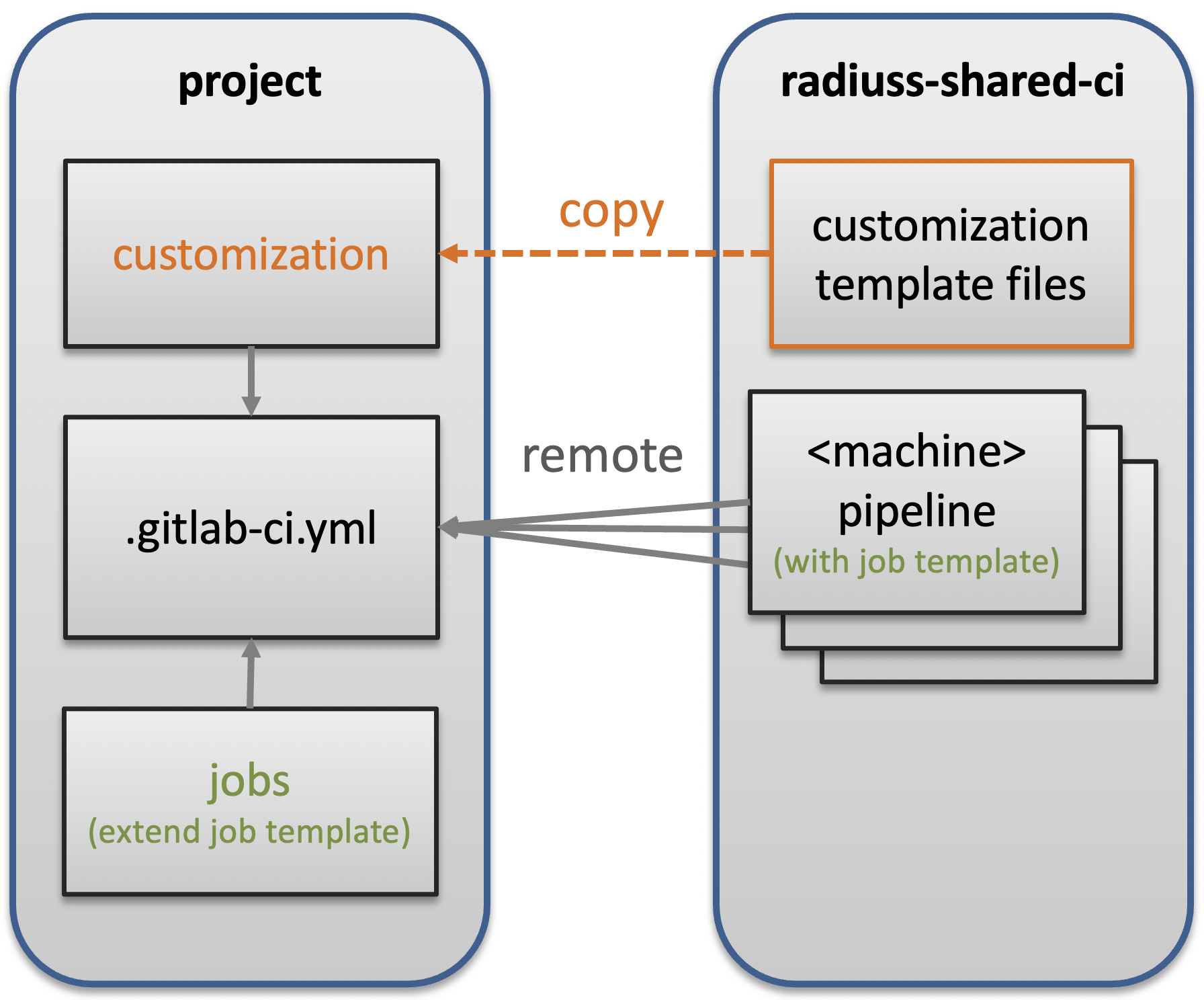

../_images/Shared-CI-File-Structure.png

RADIUSS Shared CI contains files included remotely and template files to copy and complete.

The short version

Summary of integrating RADIUSS Shared CI (legacy approach):

### Prerequisites
# write CI script

### CI Setup
cd my_project/..
git clone https://github.com/LLNL/radiuss-shared-ci.git
cd my_project
cp ../radiuss-shared-ci/customization/gitlab-ci.yml .gitlab-ci.yml
mkdir -p .gitlab/jobs
cp ../radiuss-shared-ci/customization/subscribed-pipelines.yml .gitlab
cp ../radiuss-shared-ci/customization/custom-jobs-and-variables.yml .gitlab
cp ../radiuss-shared-ci/customization/jobs/<machine>.yml .gitlab/jobs/<machine>.yml
vim .gitlab/subscribed-pipelines.yml
# comment out machines you don't want
vim .gitlab/custom-jobs-and-variables.yml
# set variables
vim .gitlab/jobs/<machine>.yml
# add jobs

### Mirroring Setup
# https://docs.gitlab.com/ee/ci/ci_cd_for_external_repos/github_integration.html

### Non-RADIUSS projects
# Set GITHUB_STATUS_TOKEN in GitLab CI/CD variables

Jump to Customize the CI and Add jobs for details.

The detailed version

CI implementation parts:

  • Local build-and-test script

  • Shared files

  • Customization files

  • Jobs

Setting up CI follows these steps.

Write CI Script

Prepare a CI script called via JOB_CMD in the CI.

Core CI implementation

Clone RADIUSS Shared CI locally:

cd my_project/..
git clone https://github.com/LLNL/radiuss-shared-ci.git
cd my_project

Copy the main CI file:

cp ../radiuss-shared-ci/customization/gitlab-ci.yml .gitlab-ci.yml

In .gitlab-ci.yml, adapt these variables:

Parameter

Description

LLNL_SERVICE_USER

Service User Account (optional but recommended)

CUSTOM_CI_BUILD_DIR

CI working directories location (if not using service user)

GIT_SUBMODULES_STRATEGY

Clone strategy (recursive if you have submodules)

GITHUB_PROJECT_NAME

GitHub project name

GITHUB_PROJECT_ORG

GitHub organization

JOB_CMD

Build and test command

ALWAYS_RUN_PATTERN

Branches skipping draft PR filter

Note

Blank variables don’t require values. Variables with “…” require one.

Warning

We strongly recommend using a service user account for easier permissions and allocation management.

Your CI now includes remote files from GitLab mirror of radiuss-shared-ci.

Customize the CI

Copy customization templates:

mkdir -p .gitlab
cp ../radiuss-shared-ci/customization/subscribed-pipelines.yml .gitlab
cp ../radiuss-shared-ci/customization/custom-jobs-and-variables.yml .gitlab

The .gitlab/subscribed-pipelines.yml file

Select machines by commenting out unwanted ones.

Note

To add a new machine, see Add a New Machine.

The .gitlab/custom-jobs-and-variables.yml file

Variables in this file:

Parameter

Description

ALLOC_NAME

Shared allocation name

<MACHINE>_SHARED_ALLOC

Shared allocation parameters (optional, may be set to “OFF”)

<MACHINE>_JOB_ALLOC

Job allocation parameters

PROJECT_<MACHINE>_VARIANTS

Global variants for shared specs

PROJECT_<MACHINE>_DEPS

Global dependencies for shared specs

You may modify .custom_job for project-specific setup (e.g., export jUnit test reports).

Add jobs

Create job files using templates:

cp ../radiuss-shared-ci/customization/jobs/<machine>.yml .gitlab/jobs/<machine>.yml

Edit to add jobs extending the machine template.

Warning

Use unique job names to avoid overriding shared jobs.

Note

Jobs can be imported from other repositories. See Import shared jobs.

Mirroring Setup

GitLab provides GitHub integration for mirroring. See GitLab documentation.

Non-RADIUSS Projects

For projects outside RADIUSS group, create a GitHub token with repo:status permissions and register as GITHUB_STATUS_TOKEN CI/CD variable in GitLab.

Visit https://lc.llnl.gov/gitlab/<group>/<project>/-/settings/ci_cd
